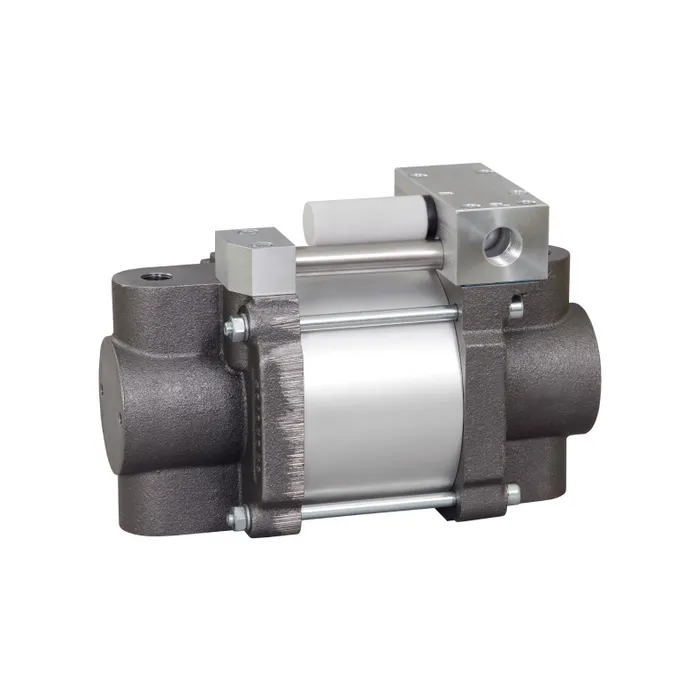

| Article number | S..D series - S 150D |
|---|---|
| Fluid | Oil |
| Pressure range | up to 1000 bar / 14,500 psi |
| Number of air drive pistons | 1 |
| Mode of action | Double-acting |
| Catalog Number | S 150D |
|---|---|
| Fluid | Oil |
| ATEX Directive | II 2G/2D IIC c TX |
| Outlet pressure max. | 1,000 bar (14,500 psi) |
| Pressure range | up to 1,000 bar / 14,500 psi |
| Pressure ratio | 1:155 |
| Number of air drive pistons | 1 |
| Mode of action | Double-acting |
| Min. Drive pressure | 1 bar |
| Max. Drive pressure | 10 bar |

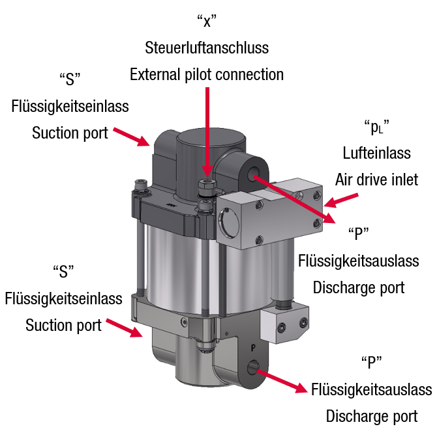

| Air drive inlet PL | 8B - 1/2 BSPP with seal outside |
| Suction port S | 8B - 1/2 BSPP with seal outside |
| Discharge port P | 6B - 3/8 BSPP with seal outside |
| Air drive section modification | Air actuated suction stroke (Standard) |
| More modifications | Standard |
| Seal kit (inlet/outlet) | NBR – Nitrile rubber, good cold and deformation behavior at -30°C to 100°C, media compatibility: low, elastic |
| Temperature option | Standard |
| Dimensions (L x W x H) approx. | 260 x 135 x 175.5 mm |
| Weight approx. | 14.5 kg |
Unfortunately, there are currently no files available for the selected article number. Please use the contact form to send a request or ask for more information.
If you need additional spare/wearing parts for the selected product or products already in use, please contact us.
 |
Seal kit airArticle number 3640.1421 Recommended Quantity 1 Schematic VP54.02.73 |
|---|---|
|
Seal kit spoolArticle number 3640.1403 Recommended Quantity 1 Schematic VP54.01.103 |
|
Seal kit HPArticle number 3640.1957 Recommended Quantity 1 Schematic VP54.04.00.46 |
