MAXIMATOR fittings and gland assemblies of the 1,550 bar series are designed for simple and safe connection of HP pipes up to a max. pressure of 1,550 bar.

All gland assemblies are fit for multiple use. Fittings are supplied complete with collars and glands.

Anti-vibration gland assemblies may be used to achieve permanent connections even under extreme mechanical loads.

MAXIMATOR fittings and gland assemblies are compatible with HP systems made by other manufacturers.

Technical data:

Body material 316 L (1.4404)
Collar material 316 L (1.4404)
Gland material 316 L (1.4404)
Temperature -50°C to +350°C
Connections 4MF, 6MF, 9MF, 12MF, 16MF
MAXIMATOR Valves Fittings Tubing

VFT Catalogue 2021 Language: English

Download

Product Categories

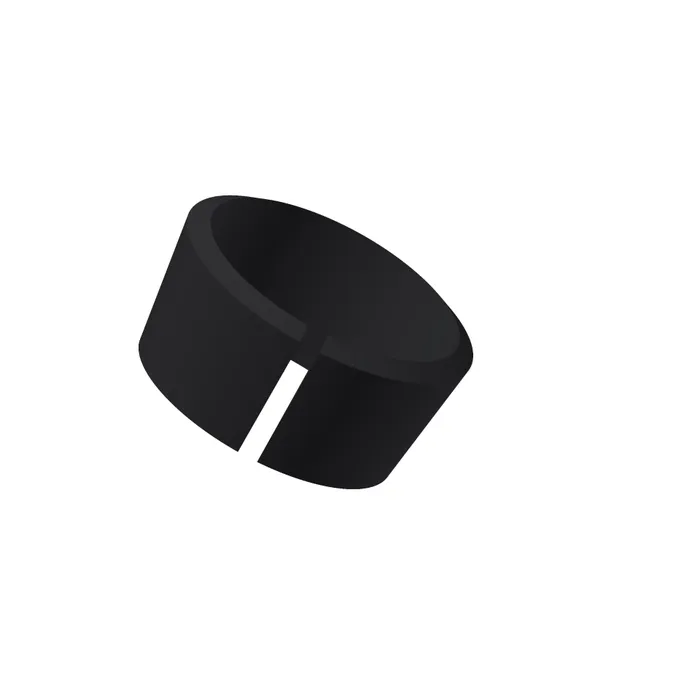

Anti-vibration slotted collet - 1,550 bar (22,500 psi)

Anti-vibration collet body - 1,550 bar (22,500 psi)

Anti-vibration-assembly cplt. - 1,550 bar (22,500 psi)

Tube cap cplt. - 1,550 bar (22,500 psi)

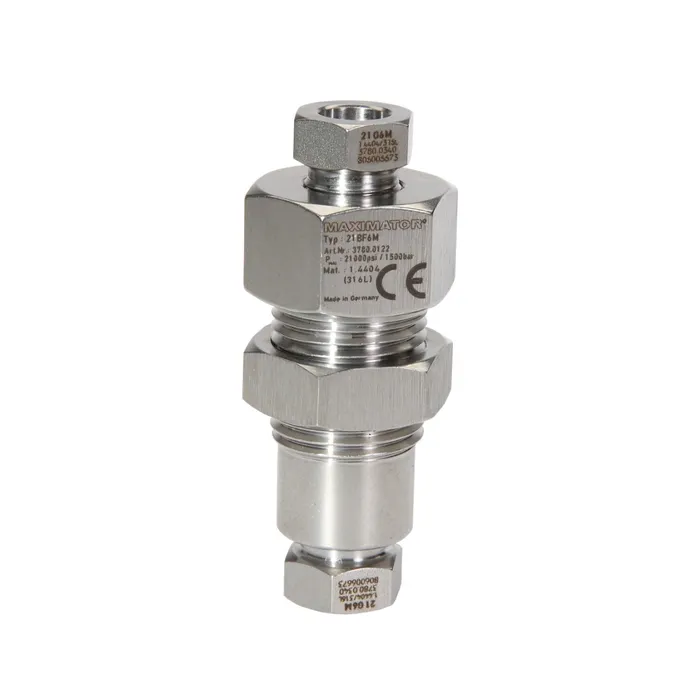

Bulkhead coupling cplt. - 1,550 bar (22,500 psi)

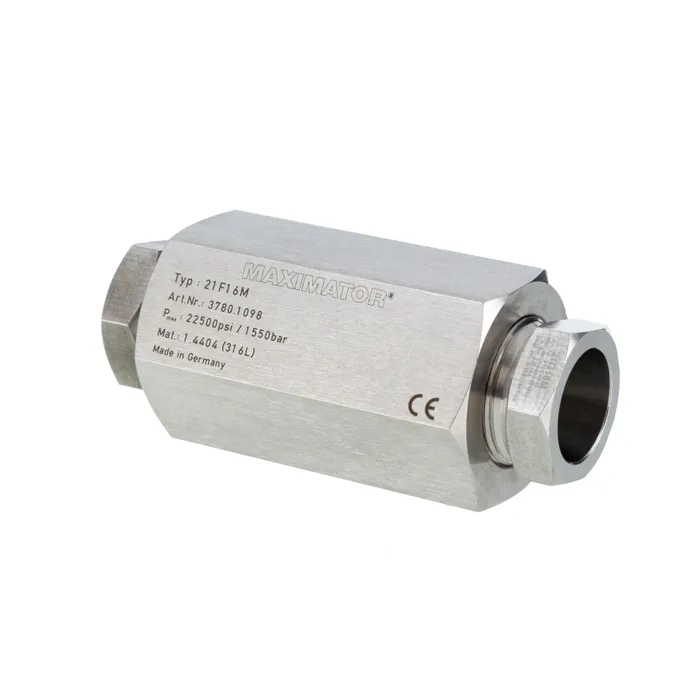

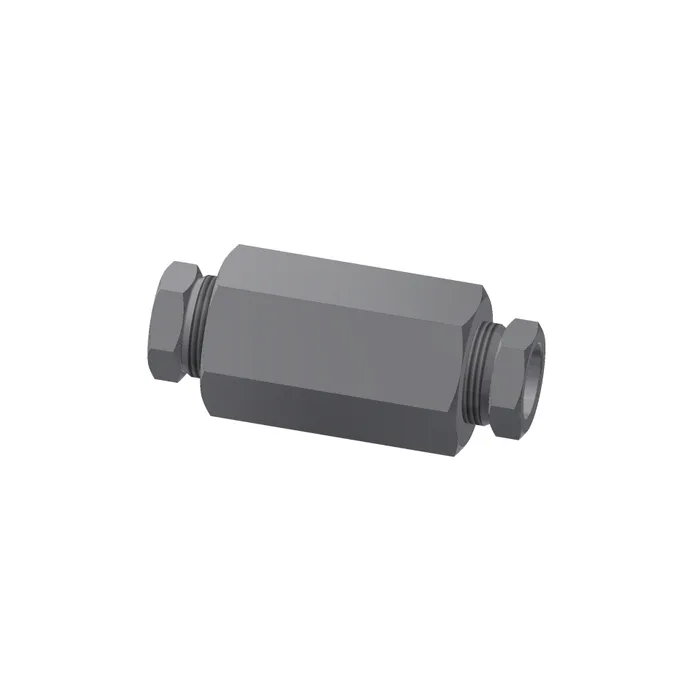

Straight coupling cplt. - 1,550 bar (22,500 psi)

Union coupling cplt. - 1,550 bar (22,500 psi)

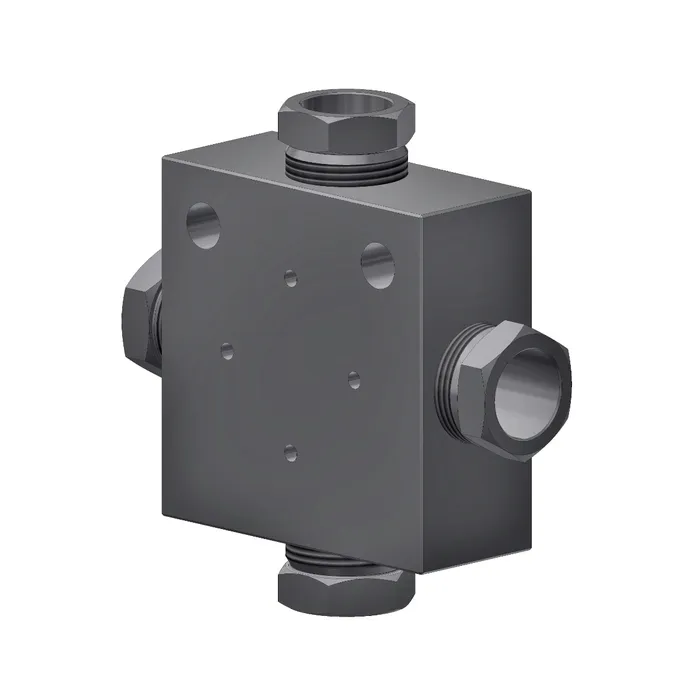

Cross connector cplt. - 1,550 bar (22,500 psi)

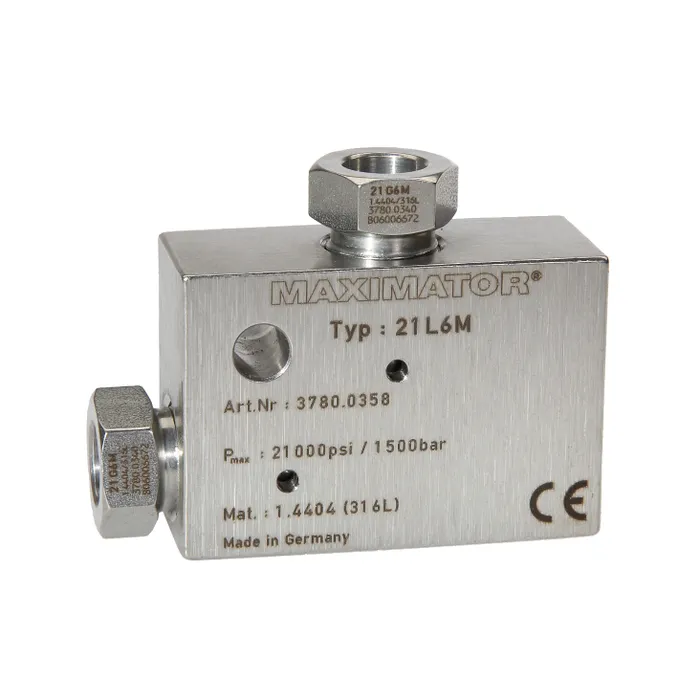

Elbow connector cplt. - 1,550 bar (22,500 psi)
