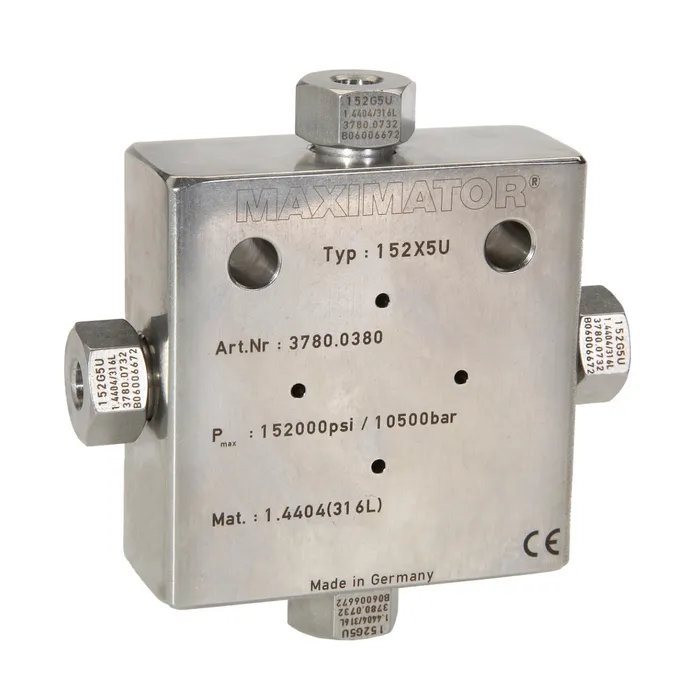

Cross connector cplt. - 152,000 psi- 5U

Article number 3780.0380
Catalog number 152X5U
Pressure range 10,500 bar / 152,000 psi
Function Conducting
Material 1.4472 (S31675)
Request A Quote

Article number 3780.0380
Catalog number 152X5U
Pressure range 10,500 bar / 152,000 psi
Function Conducting
Material 1.4472 (S31675)
Tubing diameter 5/16" (7,94)
Orifice 2,3 mm
Connection 1 5U - 5/16" Tube Ultra High Pressure
Weight approx. 1.54 kg

Technical drawing

Unfortunately, there are currently no files available for the selected article number. Please use the contact form to send a request or ask for more information.
