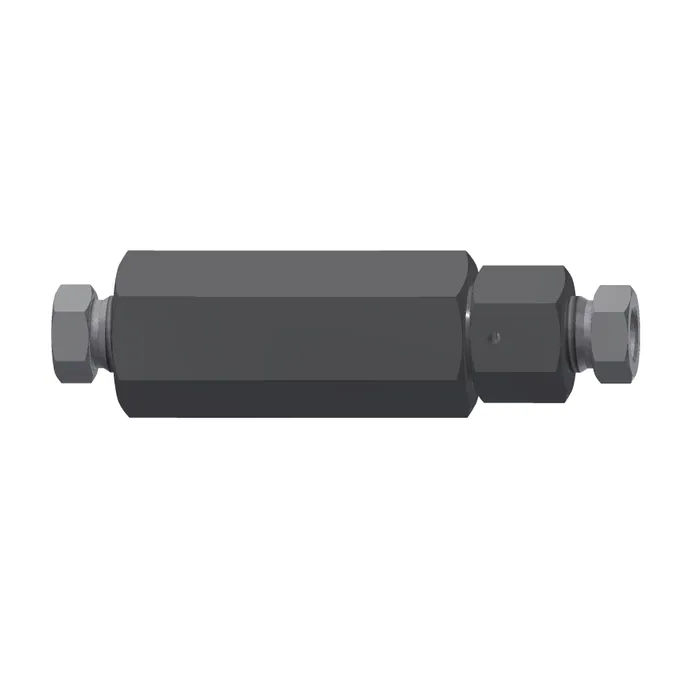

All MAXIMATOR ball check valves have a long endurance and may also be employed with high temperatures.

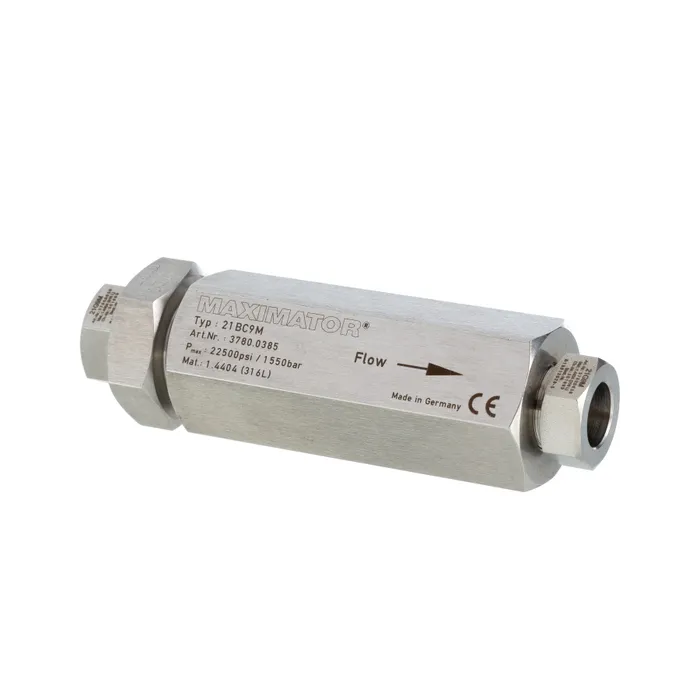

MAXIMATOR ball check valves of the 1,550 bar series shut off directional flows of fluids and gases up to a max. pressure of 1,550 bar.
According to the specific application O-Ring or ball check valves are employed. Check valves are supplied complete with collars and glands.
Technical data:
| Body Material | 1.4404 |
| Spring Material | 1.4310 |
| Ball Material | 1.3541 |
| Temperature |
- 200°C to +350°C |
| Connection | 4MF, 6MF, 9MF, 12MF, 16MF |
Advantages
Special designs
The characteristic feature of MAXIMATOR is their non-leakage sealing. All common O-Ring materials can be used as appropriate for different media and application temperatures.

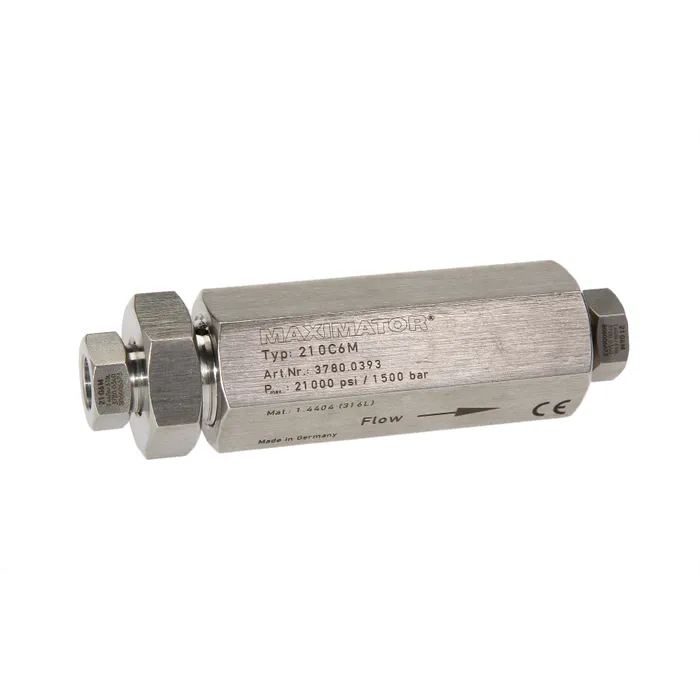

MAXIMATOR O-Ring check valves of the 1,550 bar series shut off directional flows of fluids and gases up to a max. pressure of 1,550 bar.
According to the specific application O-Ring or ball check valves are employed. Check valves are supplied complete with collars and glands.
Technical data:
| Body Material | 1.4404 |
| Spring Material | 1.4310 |
| O-Ring Material | FPM* (Standard) |
| Temperature |
- 20°C to +150°C (FPM O-Ring) |
| Connection | 4MF, 6MF, 9MF, 12MF, 16MF |
*Other O-Ring materials upon request.
Advantages
Special designs
