SLGP-Series
- Double-acting
- Single and two stage
- With one air drive piston
- Operating pressures of up to 52 bar (755 psi)

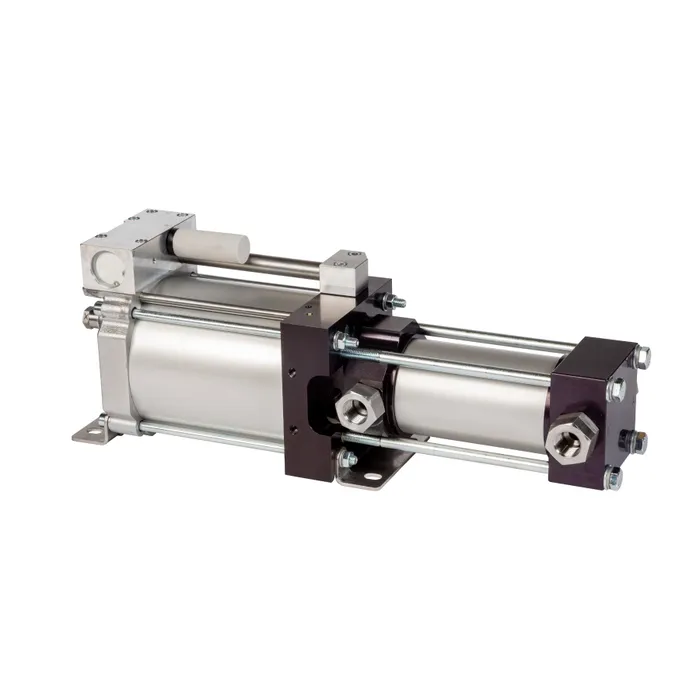

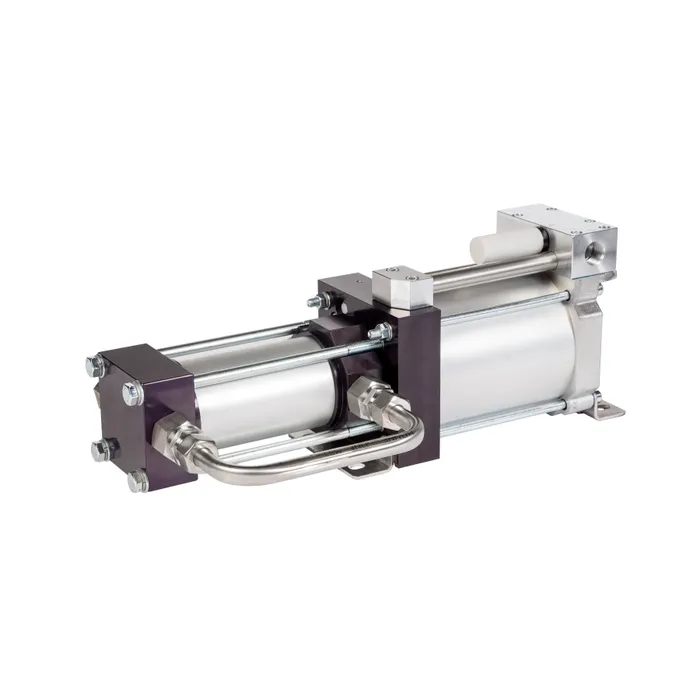

The compact and robust pumps of the SLGP series are available in a wide range of options to compress a broad spectrum of refrigerants.
- Material: Pump heads made of aluminium, Pistons and valves made of stainless steel and NBR Sealing in standard
- Standard models with bottom inlet
- Suitable for air drive pressures from 1 to 10 bar (14.5 to 145 psi)
Options for SLGP
- Seal version, e.g. FKM, HNBR, EPDM, CR for special fluids, Order code: see media compatibility guide
- Special connections, e.g. with NPT thread, Order code: SLGP 3 - NPT
- FEC-Option for dry compressed air or nitrogen drive, Order code: SLGP 3 - FEC
- LT-Option: Low-temperature modification for the high pressure section (-40°C up to 60°C), Order code: SLGP 3 - LT
- LTA-Option: Low-temperature modification for the high pressure and air drive section (-40°C bis 60°C), Order code: SLGP 3 - LTA
- Other options available on request.
