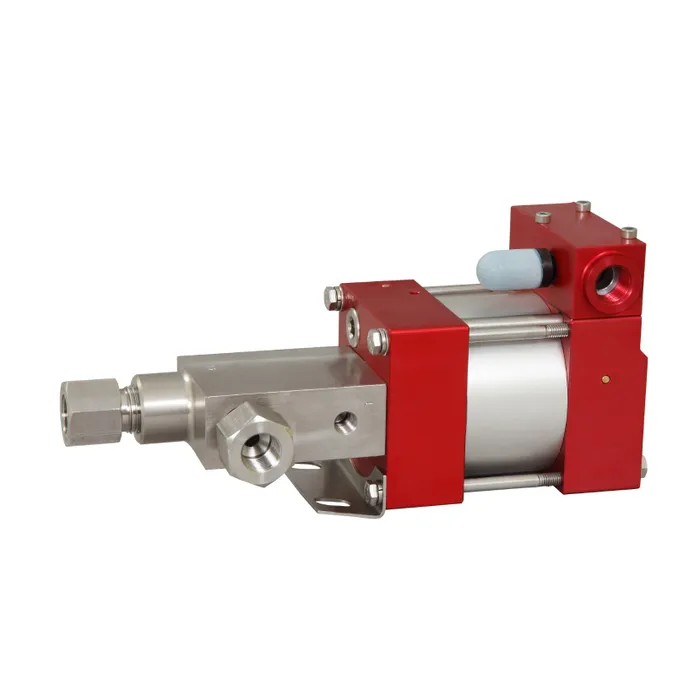

Air driven high pressure pumps for special applications up to 1,450 bar (21,025 psi) MSF series

                                  Maximator pumps of the MSF series are available in single-acting design with one air drive piston and medium separation.                                                              The maximum air drive pressure is 10 bar (145 psi).



Features high pressure pumps MSF series

  • single acting
  • single air drive head
  • Distance piece and leakage borehole
  • For operating pressures up to 2,200 bar (31,900 psi)

MSF series pumps are rugged and designed for chemical service applications. These pumps are available as single acting types with single air drive head and distance piece.

  • MSF pumps have stainless steel bodies and plungers.
  • MSF pumps have PTFE seals with FKM O-rings.
  • Pumps come standard with bottom inlet.

Options for MSF series

  • Side inlet for single acting versions: Order code: MSF37 – S
  • Special inlet and outlet ports (i. e. NPT): MSF37 – NPT
  • Air control unit for MSF series with filter pressure regulator, control pressure gauge and shut-off valve: Order code: MSF37 with C1
  • To protect the pump against excessive outlet pressures, an air safety valve can be fitted to the air control unit: Order code: MSF37 with C1/SVair (The outlet pressure has to be indicated.)

Other option is available on request.

MAXIMATOR High Pressure Pumps

3999.0467, Language: English, Release: 02/2024
