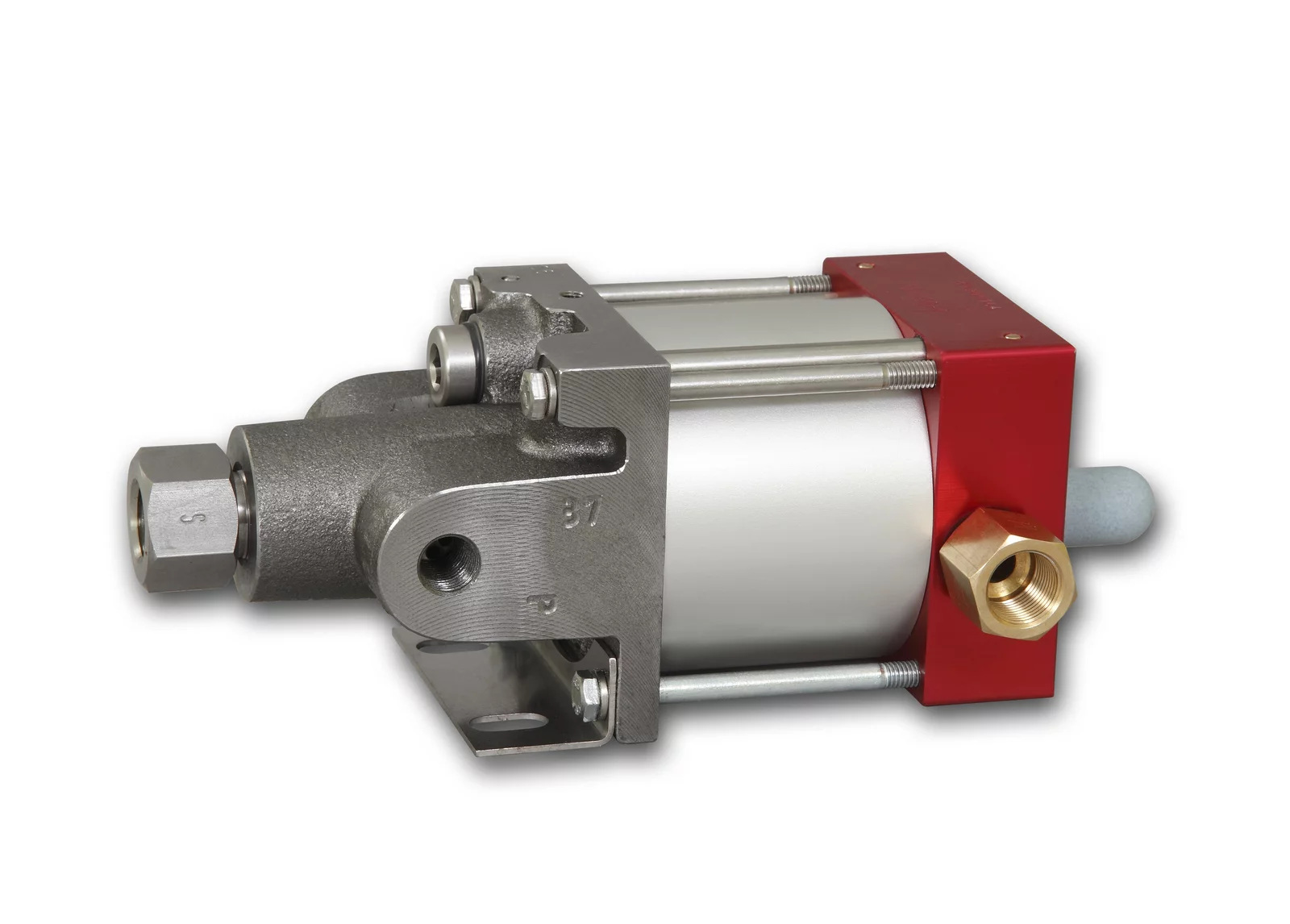

Air driven high pressure pumps for oil applications up to 1,000 bar (14,500 psi) MO series

Maximator pumps of the MO series are available in single-acting design with one air drive piston. The maximum air drive pressure is 10 bar (145 psi).

Features high pressure pumps MO series

  • single acting
  • single air drive head
  • Operating pressures up to 1,000 bar (14,500 psi)

MO pumps are single acting types with single air drive head. They are lightweight, rugged and are available in several pressure ratios.

  • Cast iron bodies, tool steel plungers and polyurethane seals
  • All MO pumps are standard with bottom inlet, side inlet is available as option.
  • Ideal for portable power packs

Options for MO series

  • Side inlet for single acting versions: Order code: MO37 – S / M37(L)VE – S
  • External pilot port modification: (only available for MO22 to MO189 single acting; Pump can be started and stopped by a small magnetic valve) Order code: MO37 – DIR
  • Special inlet and outlet ports (i. e. NPT): MO37 – NPT
  • Air control unit for MO series with filter pressure regulator, control pressure gauge and shut-off valve: Order code: MO37 with C1
  • To protect the pump against excessive outlet pressures, an air safety valve can be fitted to the air control unit: Order code: MO37 with C1/SVair (The outlet pressure has to be indicated.)

Other options available on request.
