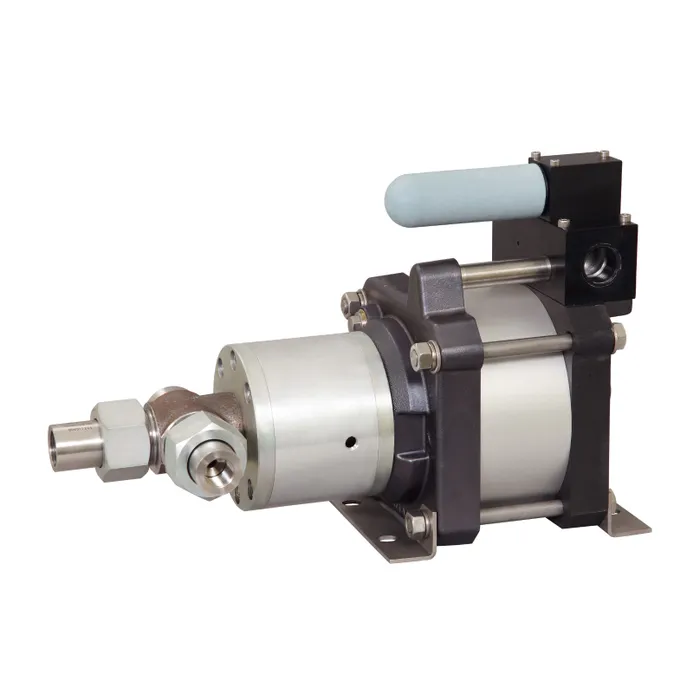

Air driven high pressure pumps for special applications up to 1,450 bar (21,025 psi) GSF series

Maximator pumps of the GSF series are available in single-acting design with one air drive piston. The maximum air drive pressure is 10 bar (145 psi).



Features high pressure pumps GSF series

  • single acting
  • single air drive head
  • For operating pressures up to 1,450 bar (21,025 psi)

GSF series pumps are rugged and designed for chemical service applications. These pumps are available as single acting types with single air drive head and distance piece.

  • GSF pumps have stainless steel bodies and plungers.
  • GSF pumps have PTFE seals with viton O-rings.

Options for GSF series

  • Special seal material to handle special fluids: Order code: See fluid compatibility guide
  • Side inlet: Order code: GSF35 – S
  • Special inlet and outlet ports (i. e. NPT): GSF35 – NPT
  • Air control unit for GSF series with filter pressure regulator, control pressure gauge and shut-off valve: Order code: GSF35 with C2
  • To protect the pump against excessive outlet pressures, an air safety valve can be fitted to the air control unit: Order code: GSF35 with C2/SVair (The outlet pressure has to be indicated.)

Other option is available on request

MAXIMATOR High Pressure Pumps

3999.0467, Language: English, Release: 02/2024
