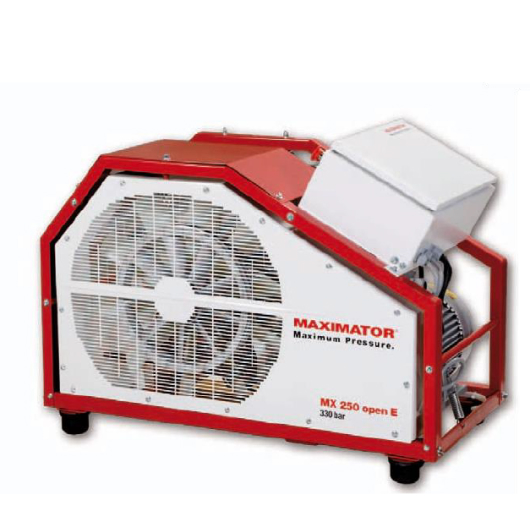

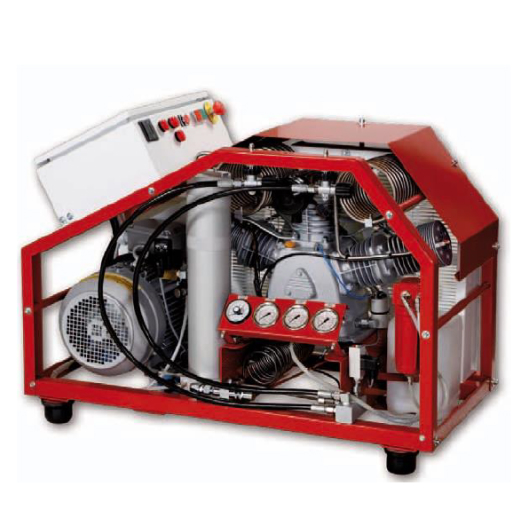

| Model Number | MXI 250 OPEN E |
|---|---|
| Outlet pressure max. | 350 bar (5075 psi) |
| Construction | Air-cooled piston compressor |
| Power supply | 3-phase drive, 5,5 kW 400 V / 50 Hz |
| Model Number | MXI 250 OPEN E |
|---|---|
| Outlet pressure max. | 350 bar (5075 psi) |
| Construction | Air-cooled piston compressor |
| Power supply | 3-phase drive, 5,5 kW 400 V / 50 Hz |
| Free air delivery | 250 l/min - 15 m³/h - 8,8 cfm |
| Filter system | MXI Filter 170 |
| Air quality | EN 12021 |
| Cylinder / Stages | 3 / 3 |
| Rotation speed | 1100 min-1 |
| Oil lubrication | spin pin |
| Oil capacity | 2,2 l |
| Star-delta circuit | Optional |
| Dimensions (l x w x h) | 107 x 54 x 70 cm |
| Weight | 155 kg |
| Ambient temperature | +5°C - +45°C |
